Senotec Sensors

Sensors

Rechner Electronics Industries Inc. and Rechner Automation Inc. are the official distribution partners for Senotec in the USA and in Canada. Our team has over 50 years of experience with level control systems. Please contact us for more information:

Phone: 1-800-544-4106
E-mail: contact@senotec-sensors.com

Senotec Germany: www.senotec.de

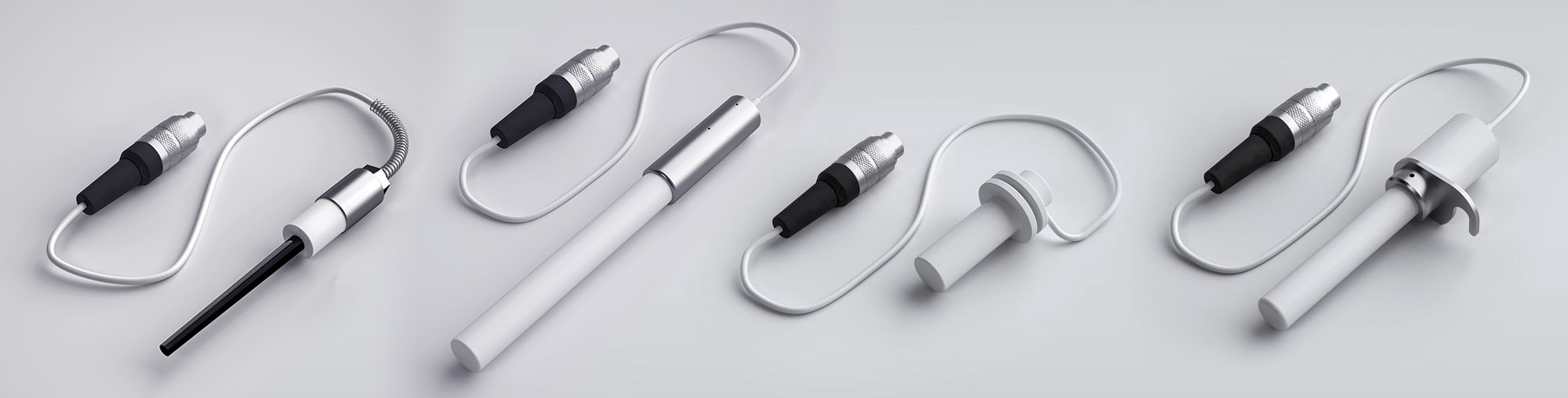

Sensors

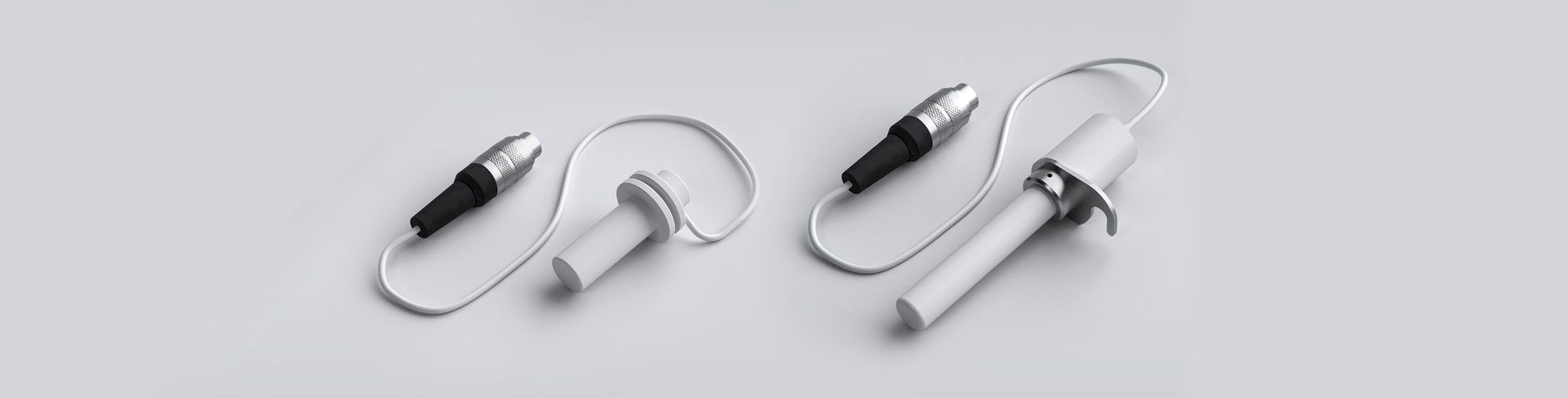

R series sensors

R-series

Immersion sensor with one switching point

The R series offers the most comprehensive range of standard sensors for monitoring levels. In combination with a SenoTec switching amplifier you get reliable level detection for difficult to monitor, non-conductive media such as hot glues, adhesives, waxes, oils, greases, etc.

Product features:

  • Material PTFE or PEEK
  • Temperature range -10 ... 250°C
  • Can be used horizontally or vertically
  • Cable lengths up to 3,000mm
  • Versatile mounting options
  • Switching point adjustable within the active zone

R-series catalog

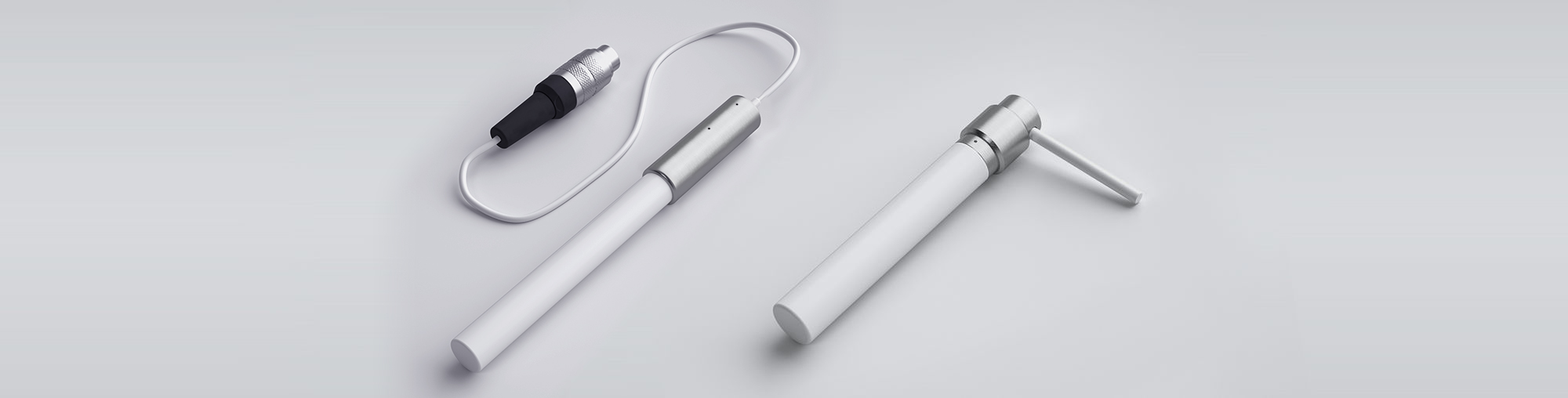

D series sensors

D-series

Immersion sensor with two switching points

In combination with the switching amplifier DLC-20, the D-series enables the evaluation of two switching thresholds within one sensor, e.g. for low-level and high-level function; minimum-maximum function; or standard level + alarm level function.

Product features:

  • Material PTFE
  • Temperature range -10 ... 250°C
  • Switching points adjustable within the active zones
  • Two independent switching outputs
  • Various mountings for vertical use
  • Use only in conjunction with DLC-20 switching amplifier

D-series catalog

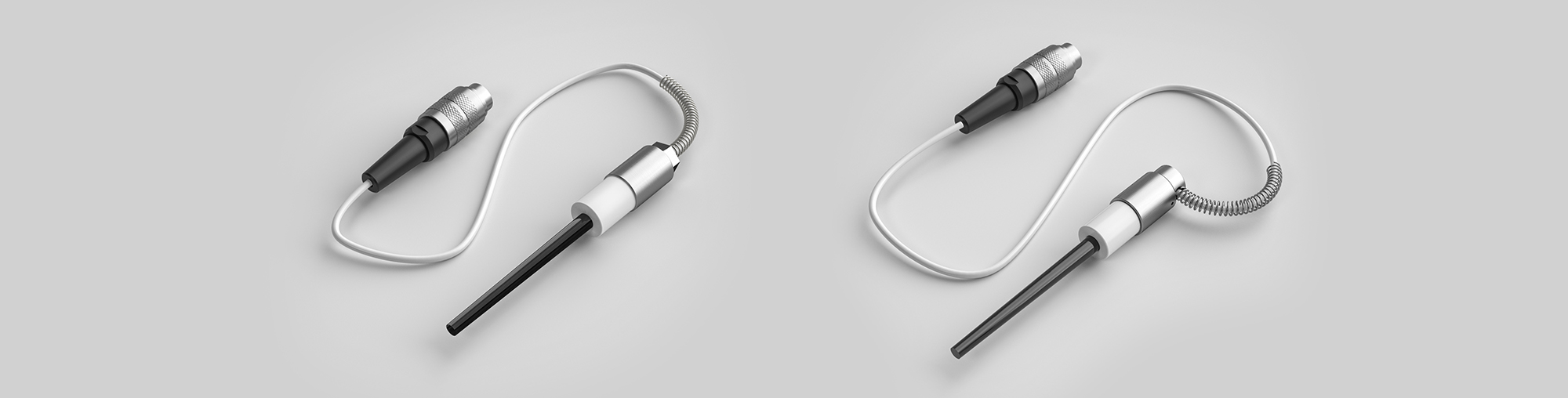

S series sensors

S-series

Immersion sensor with continuous active zone

The S series offers the perfect solution for monitoring your fill level, especially in confined spaces and PUR applications.

This new series stands out for its long service life, robustness and reliable switching behaviour, even when filled with granulate or in changing aggregate states.

Product features:

  • Active zone with non-stick coating
  • Temperature range -10 ... 250°C
  • Process reliability even with granulate filling
  • Excellent properties when used in PUR adhesives
  • Can be used vertically and horizontally
  • Can also be used in confined spaces

S-series catalog



Controllers

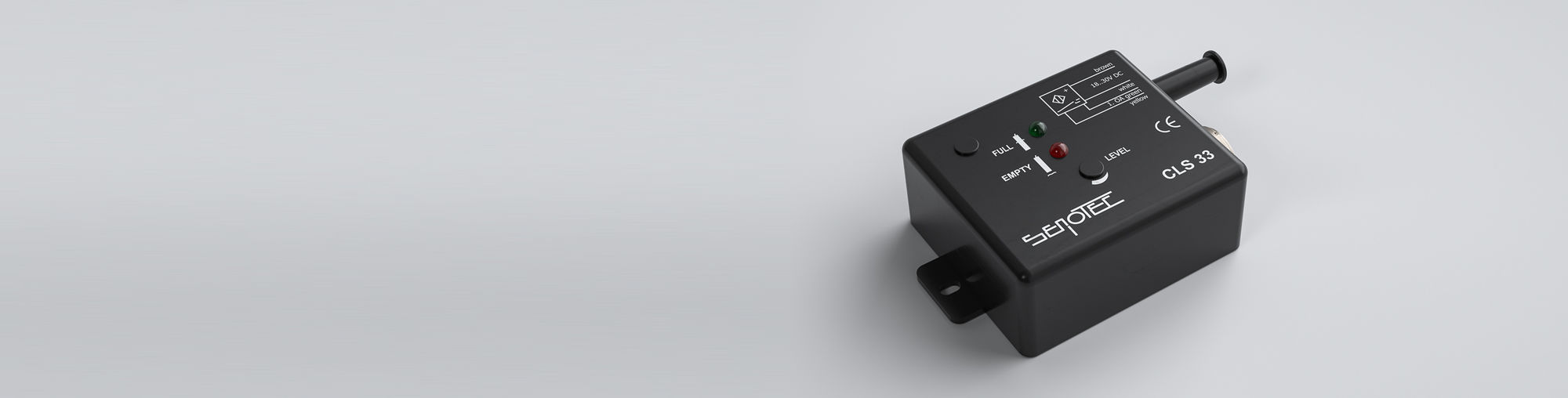

CLS Controller

CLS-series

The classic level control device

The success of the CLS series continues unabated today. The CLS series offers a high degree of operational safety and ease of use for controlling a level.

Product features:

  • Supply voltage 18 ... 30 V/DC
  • Easy adjustment to material
  • Easy installation
  • Can be used with a wide varaiety of standard sensors
  • Available with different cable lengths
  • New: now available with M12 connector

CLS controllers catalog

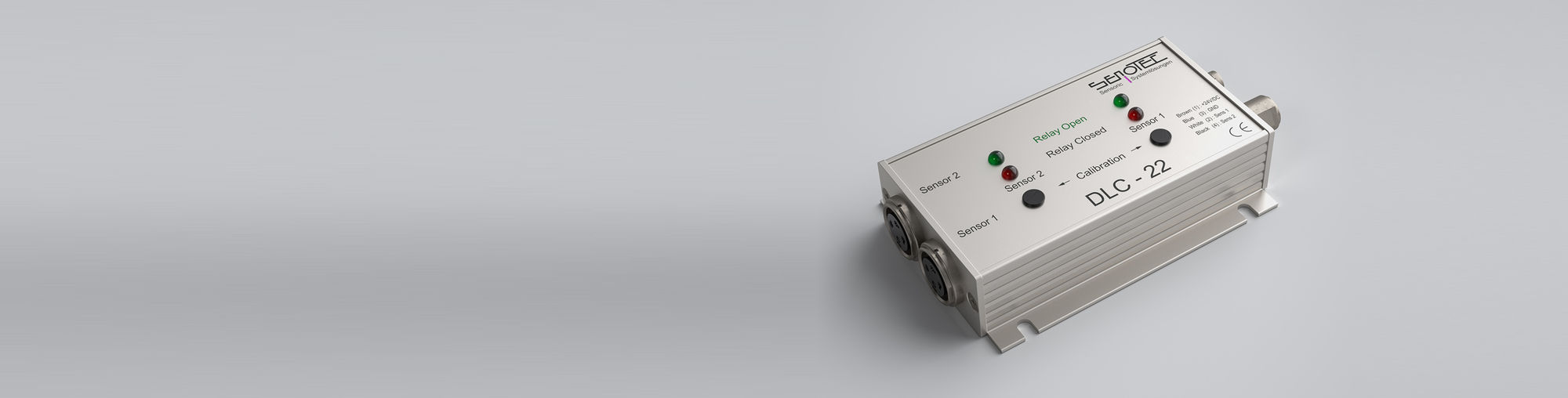

DLC Controller

DLC-series

Versatile solutions for level control

With the new DLC series and the appropriate R + D series sensors, Senotec offers new application possibilities for the level control of materials with high viscosity and high temperatures.

Product features:

  • Robust aluminum housing
  • M12 connector
  • Supply voltage 18 ... 30 V/DC
  • Easy adjustment to material
  • Easy installation
  • Can be used with a wide varaiety of standard sensors

DLC controllers catalog

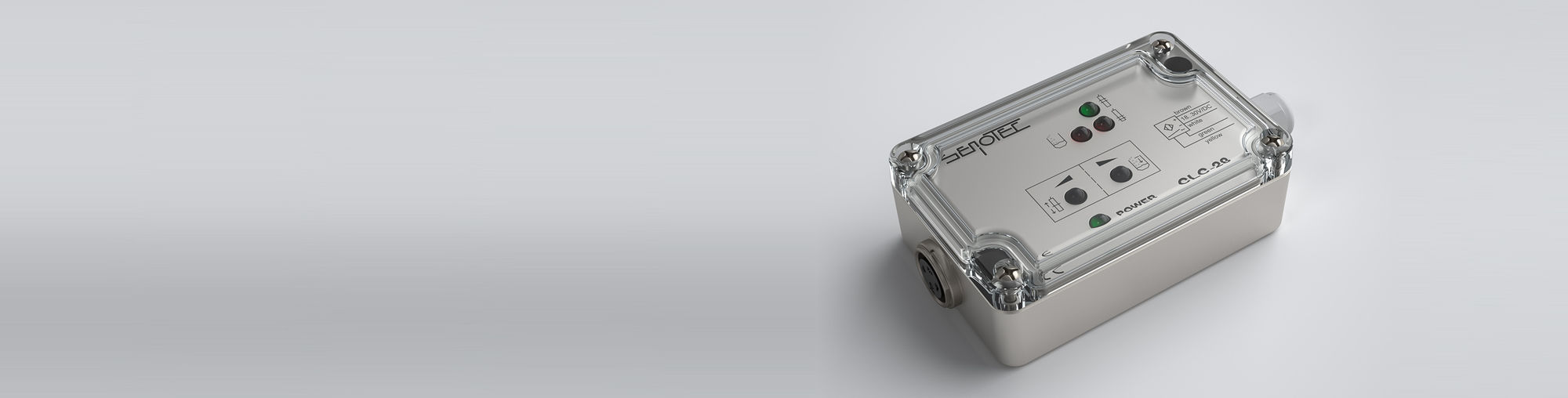

CLC Controller

CLC-series

The series with additional functions and robust housing

With the CLC series, Senotec offers additional functions, especially for the vertical installation of the sensors, such as changing the hysteresis or setting a further switching point above the normal control.

Product features:

  • Supply voltage 18 ... 30 V/DC
  • Robust cast aluminum housing
  • Transparent cover with view of LED displays
  • Can be used with a wide varaiety of standard sensors
  • M12 or M8 connector
  • Special functions available

CLC controllers catalog



CSV Controller

CSV-series

The series for special applications

With the CSV 55 switching amplifier, SenoTec also offers customers an excellent level control system for 110...240 V/AC. Refill processes can be customized with the adjustable time delay.

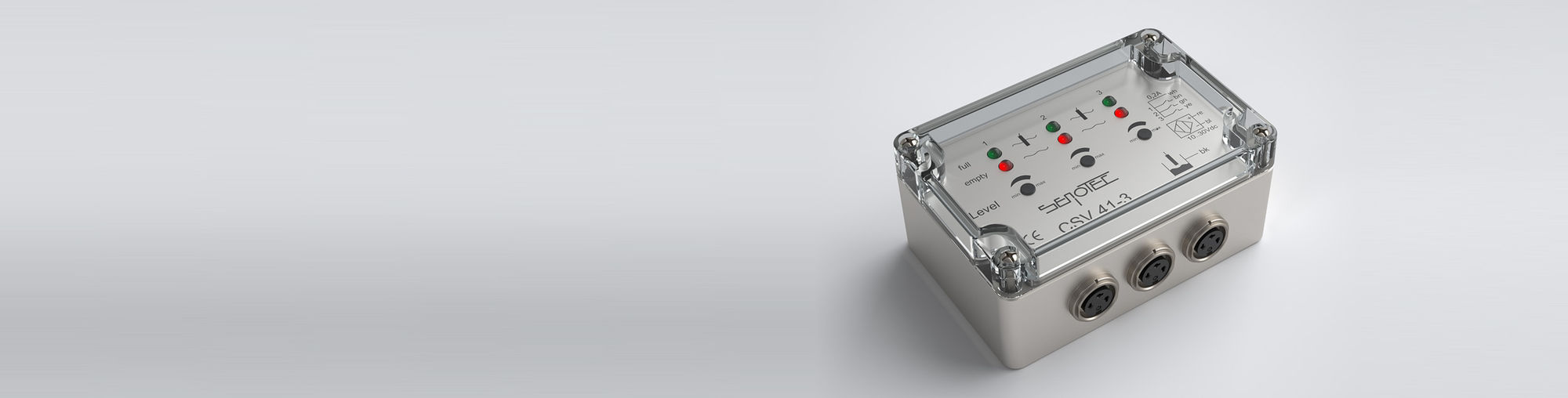

The CSV 41-3 switching amplifier extends the SenoTec range for applications by up to three sensors, which can be set individually and have their own relay output.

Product features:

  • Supply voltage 18 ... 30 V/DC (CSV 41-3)
  • Supply voltage 110 ... 240 V/AC (CSV 55)
  • Transparent cover with view of LED displays
  • Can be used with all C-Series and R-Series sensors
  • Easy to use
  • Special functions available

CSV controllers catalog



Product Lookup

Article Number Description (use Article Number when ordering)
30 033 05CLS 33-L05
30 033 20CLS 33-L20
30 033 20MCLS 33-L20M0
30 033 225CLS 33-E5-L20
30 033 27MCLS 33-L27M0
30 033 50CLS 33-L50
30 033 50MCLS 33-L50M0
30 045 00CLS 45-AV-M12
30 045 05CLS 45-L05
30 045 05-NCCLS 45-L05-NC
30 045 100CLS 45-L100
30 045 50CLS 45-L50
30 045 60CLS 45-L60
30 045 80CLS 45-L80
30 045 NOCLS 45-NO-M12
30 080 05CLS 80-L05
30 080 60CLS 80-L60
30 533 20CLS 33-WB-L20
30 933 20CLS 33-W-L20
30 933 99CLS 33/2-W-SL20
20 022 05CLC 22-L05
20 028 15CLC 28-L15
20 028 99CLC 28-IMA
20 040 05CLC40-L05
20 040 08CLC 40-SM8
20 040 15CLC 40-L15
50 010 00DLC - 10
50 010 00-AVDLC 10-AV
50 020 00DLC - 20
50 022 00DLC - 22
10 055 00CSV 55
10 055 06CSV 55-V5B
10 055 100CSV 55-SM/KL
10 055 50CSV 55-L50
10 055 99CSV 55-SM
10 241 00CSV 41-2EP1
10 241 15CSV 41-2
10 241 99CSV41-2K1E
10 341 00CSV41-3 B
10 552 00CSV 55-2
130 100R3S-1/7L20
130 102R2T-4/6L25
130 103R3QE-5/12
130 104R3E-8/16L12
130 105R6M8-5/15L15
130 106R3EW-3/8 L15
130 11R3E-5/12
130 111RQ4W4-1/4
130 112R2S-1/3L20
130 114R4W4-1/4 L25
130 115R2T-5/10L10
130 116R3G-3/6
130 117R2T-5/10L15
130 118R4T-1/6
130 119R3E-5/12L20
130 12RSM30-1/55L15
130 120R3T-5/7
130 121R3QE-8/16L12
130 122RQ6M8-8/17L30
130 123R11M8-4/17L20
130 124R11M8-8/22 L15
130 125R6M8-5/15L20
130 126R4M8-4/10L20
130 127R2S-1/3L15
130 128PR8-4/70L10
130 129PR8W-2/50L10
130 13R2T-4/6L4
130 130R2T-3/5L30
130 131R2Q-5/10L15
130 132R8-4/70L10
130 133R8W-2/50L10
130 134R2T-4/6L15
130 135R2Q-5/8 L30
130 137R3STD-3/7L20
130 138R3ST-1/5L15
130 14R2T-5/10L6
130 140R11M8-4/22 L15
130 142R2QF-5/10 L20
130 143R1QW-38/13L12
130 144R2W2-3/5L5
130 146R3E-5/14
130 147R2T-5/9L20
130 148R3T-5/7 L20W
130 15R4W4-1/4
130 151R3G-5/14
130 152R2T-4/6
130 153R2P-3/6 L20
130 154R3T-5/7L12W
130 155PR3S-3/8
130 156R1Q-8/13L12
130 157R3G-8/13L20
130 16R2P-3/6 L10
130 160R3E-5/10L10
130 17R4W4-1/4 L15
130 18R2Q-5/10 L20
130 19R2Q-5/8
130 20R3EW-3/8
130 21R2SW-3/5
130 22R3P-3/8
130 23R4M8-3/9
130 24R2T-4/6L6
130 25R6G-8/17
130 26R2Q-3/6L15
130 27R2Q-5/8L15
130 28R2Q-5/8 L20
130 29R2P-3/6 L6
130 30R3M8-5/10
130 31R3ST-1/5
130 32R3STD-1/5
130 33R6M8-8/17
130 34R11M8-8/22
130 35R3G-5/10
130 36R3S-3/8
130 37R20M8-5/32 L15
130 38R6M8-5/15
130 39R2Q-5/10 L4
130 40R42M8-5/50 L20
130 41R6G-5/17L20
130 42R11M8-8/22 L20
130 43R3G-5/10 L15
130 44R6M8-8/17 L20
130 45R3G-5/10 L20
130 46R8M8-5/15 L20
130 47R33M8-5/45L15
130 48R2Q-5/10 L6W
130 49R6M8-8/17L15
130 50R3G-1/5
130 51R27M8-5/37 L15
130 52R2S-1/4
130 53R20M8-5/32 L20
130 54R3T-5/7 L10W
130 55R2Q-5/10
130 56R30M8-5/40 L15
130 57R2T-3/5
130 58R6G-5/17
130 59R20M8-5/28 L15
130 60R4W4-1/4 L20
130 61R2T-3/5L20
130 62R2Q-1/5
130 63R3G-3/6L15
130 64R2T-5/9L6
130 65R2S-3/5L15
130 67R3ST-1/6
130 68R3QW-3/8
130 69R3G-3/8
130 70R3P-3/8L20
130 71R30M8-5/40 L20
130 72R2T-3/5L25
130 73R6M8-8/17 L30
130 75RQ6M8-5/13
130 76RQ5M8-4/9
130 77R4M8-5/12L15
130 78R2S-1/3
130 79R16M8-5/22
130 81R2Q-3/6
130 82R3S-5/8L20
130 83R3STD-1/4
130 84R3M8-5/10 L20
130 85R3GQ-5/10 L20
130 86R3GTQ-1/5
130 87R6GQ-8/15L20
130 88R2Q-5/8L10W
130 89R2T-4/6L20
130 90R3ST-1/5L20
130 91RQ6M8-8/17L15
130 92R2S-1/4L20
130 94R7-1/66L20
130 95RS-M32/70L30
130 96RWM20-20-85/100
130 97R2Q-3/6-L20
130 99RPK-3/6L6
150 01PRS-1/3
130 141D1Q-2x3/13L12
130 145D2QH-2x3/13L12
130 149D2Q-2x3/13L12
130 150D3E-2x3/16L12
130 158D6M8-2x3/17L12
130 159D6G-2x3/17L12
180 01S1Q-7/11
180 07S3G-80/125
180 08S3GQ-80/125
180 09S3G-70/115
180 10S3G-20/65
180 11S3G-25/70
180 12S3G-30/75
180 13S3G-40/85
180 14S3G-50/95
180 15S3G-60/105
180 16S3G-90/135
180 17S3GQ-70/115
180 18S3GQ-20/65
180 19S3GQ-25/70
180 20S3GQ-30/75
180 21S3GQ-40/85
180 22S3GQ-50/95
180 23S3GQ-60/105
180 24S17D16-3/22
180 25S3GQ-20/65L20
180 26S4G-90/245L15
180 27S4G-50/195
180 28S3G-30/75L15
180 29S3G1/2-30/75L15
180 30S3GQ-90/165
180 31S3GQW-20/65L30
110 100C3STD-1/4
110 104C3STD-1/4-L20
110 105C3S-1/7L20
110 108C5G-1/8L20
110 13TC11M8T-10/22
110 15C3G-6/10
110 26F2Q4/10L20
110 37C3G-6/10L
110 38C3S-1/4
110 53C0T 3-4/4
110 57C2Q-6/10L6W
110 62C3G-1/4
110 69C3M8-1/4
110 75C2S-1/3
110 94C3W4-4/4
110 95C4T1-6/4
